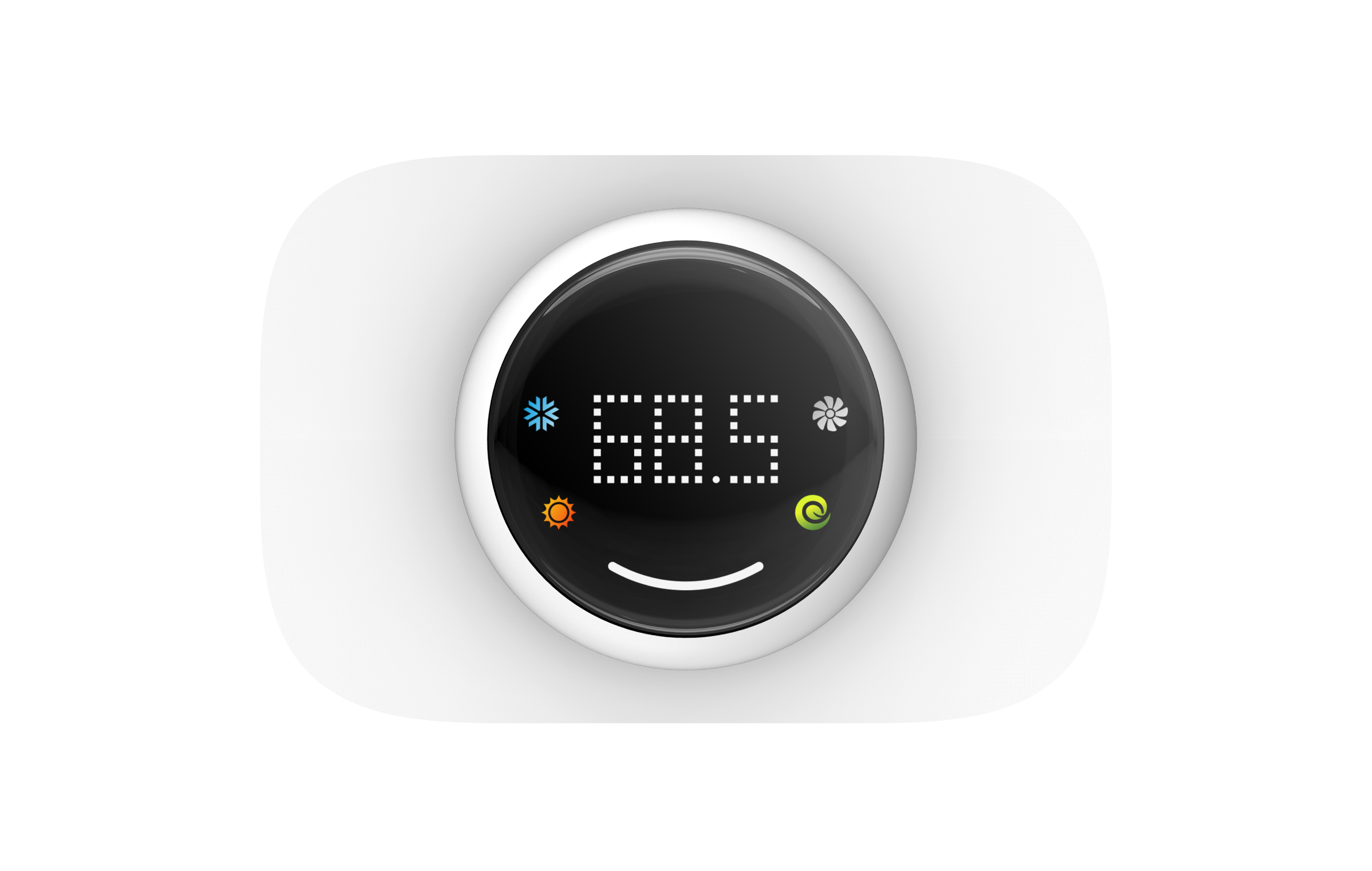

GS368

HVAC Thermostat

With cloud and app connectivity, users can customize settings remotely, making temperature management more intuitive and intelligent. It connects seamlessly to your home Wi-Fi network, allowing you to control your HVAC system from anywhere using your smartphone. It features an intuitive touch interface with a 3-digit LED display that auto-dims based on ambient light, and a human proximity sensor that automatically activates the display when you approach.

Bullet Points

Smart Wi-Fi Connectivity

Connects directly to your home Wi-Fi network, allowing you to control and monitor your HVAC system remotely via a dedicated smartphone app.

Dual Wireless Technology

Built-in Wi-Fi and Bluetooth Low Energy (BLE) modules provide robust and flexible networking options for easy setup and remote control.

Reliable Backup Power

Powered by 24VAC with two AAA alkaline batteries as a backup, ensuring up to 30 days of standby operation during power outages.

Intelligent Energy Saving

Automatically adjusts temperature based on seasonal changes and pre-set weekly schedules to optimize energy efficiency and reduce utility costs.

Intuitive Touch Interface

Features a 3-digit LED display and six capacitive touch keys (Cool, Heat, Fan, Energy, Temp+, Temp-) with auto-dimming based on ambient light.

Human Proximity Sensing

Equipped with an infrared (IR) sensor that detects human presence within 50cm to automatically activate the display and adjust settings.

Key Specifications

Control Object	Conventional HVAC or HP System
Power Supply	AC 24V/60Hz ±15%
Backup Battery	2x AAA Alkaline Batteries (30 Days Standby)
Wireless Protocol	2.4GHz Wi-Fi & Bluetooth (BLE)
Temperature Range	5°C ~ 30°C (41°F ~ 86°F)
Temperature Accuracy	±0.5°C / ±1°F
Display	3-Digit LED with Auto Dimming
Control Interface	6 Capacitive Touch Keys
Proximity Sensor	IR Sensor (≤50cm Range)
Product Design Life	10 Years
Operating Temperature	0°C ~ 50°C (32°F ~ 122°F)
Operating Humidity	10% ~ 90% RH (Non-condensing)
Dimension	81.5mm x 81.5mm x 30mm
Weight	~107g (Bare Unit)
Compliance Standard	NEMA DC 3-2013, UL60730, FCC PART15, ENERGY STAR

Usage Scenarios

Complete Home Climate Control

Easily manage heating and cooling systems throughout your home, ensuring optimal comfort in every room while reducing unnecessary energy consumption.

Smart Energy Management

Utilize programmable schedules and automatic seasonal adjustments to minimize energy waste and significantly lower your monthly utility bills.

Anywhere Remote Control

Connect the thermostat to your home Wi-Fi network, enabling you to adjust settings and monitor your home's climate from anywhere using your smartphone.

Home Climate

Energy Saving

Remote Control

Why Siterwell

With over a decade of expertise in IoT and safety technology, Siterwell partners with businesses worldwide to create smarter, safer living environments.

Backed by strong R&D capability, global certifications, and a 56,000 m² production base, we deliver both innovation and reliable large-scale manufacturing.
From award-winning designs to proven global delivery across Asia, Europe, and the US, we focus on building long-term partnerships that drive mutual growth and success.
