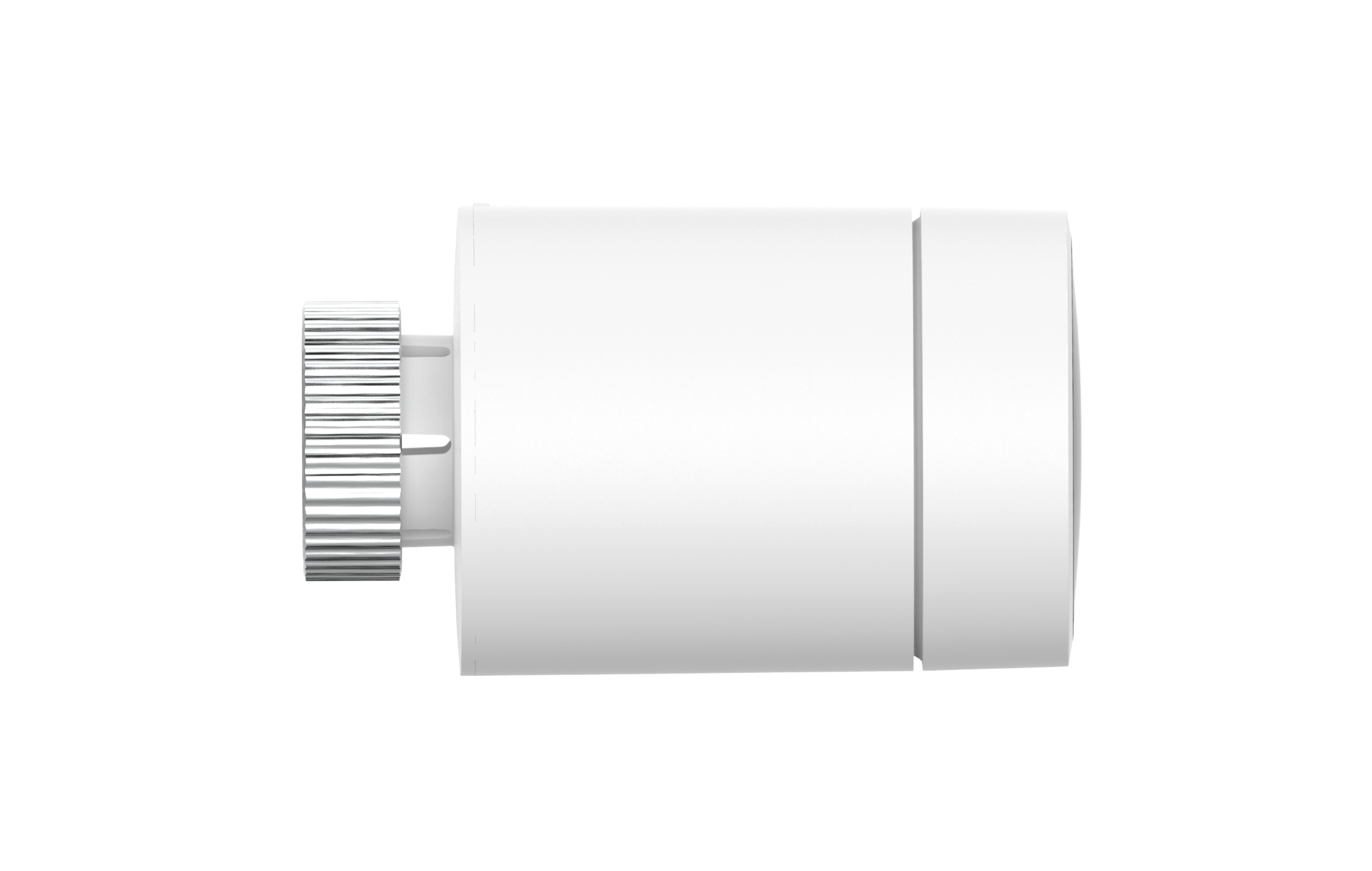

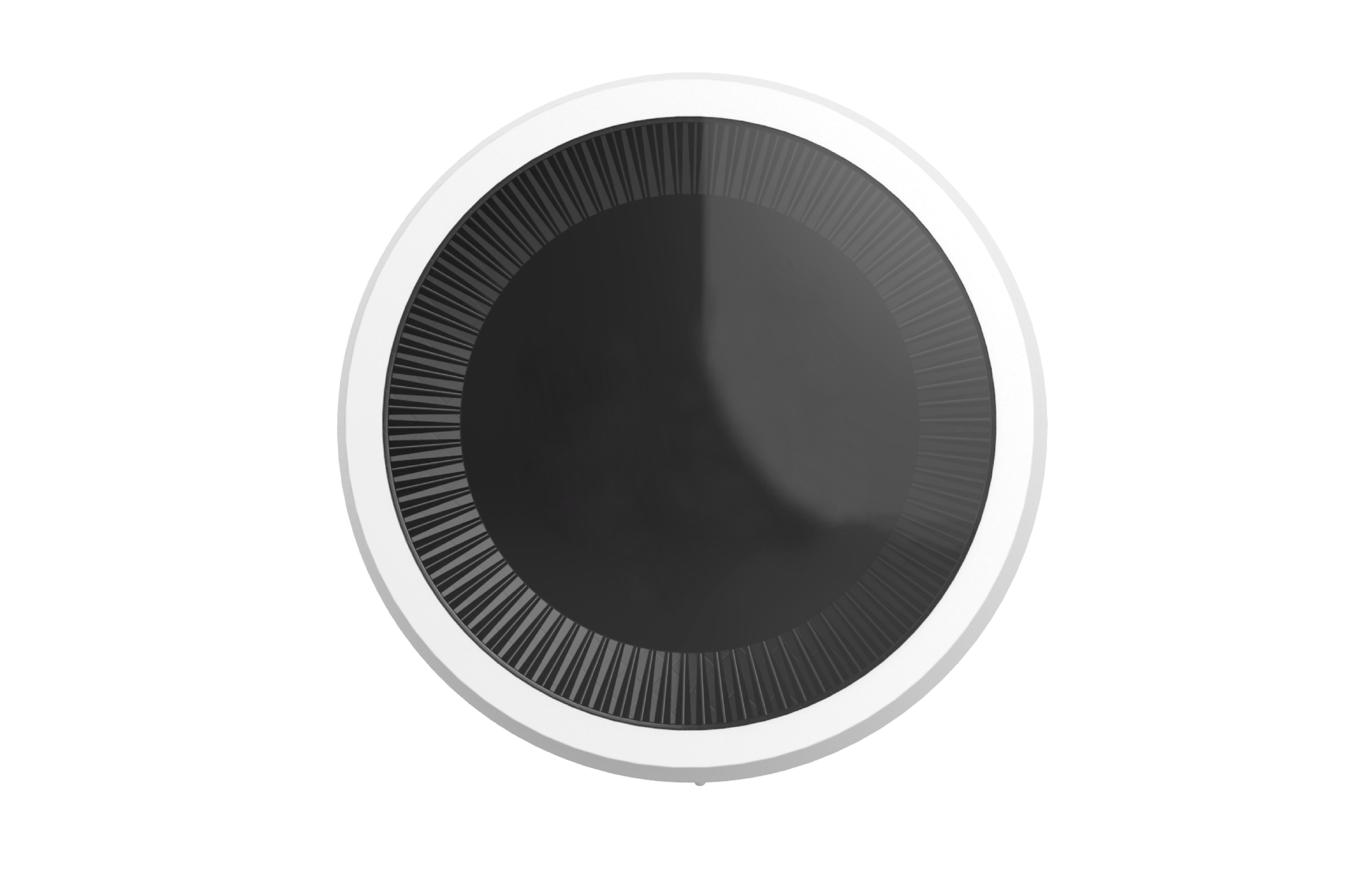

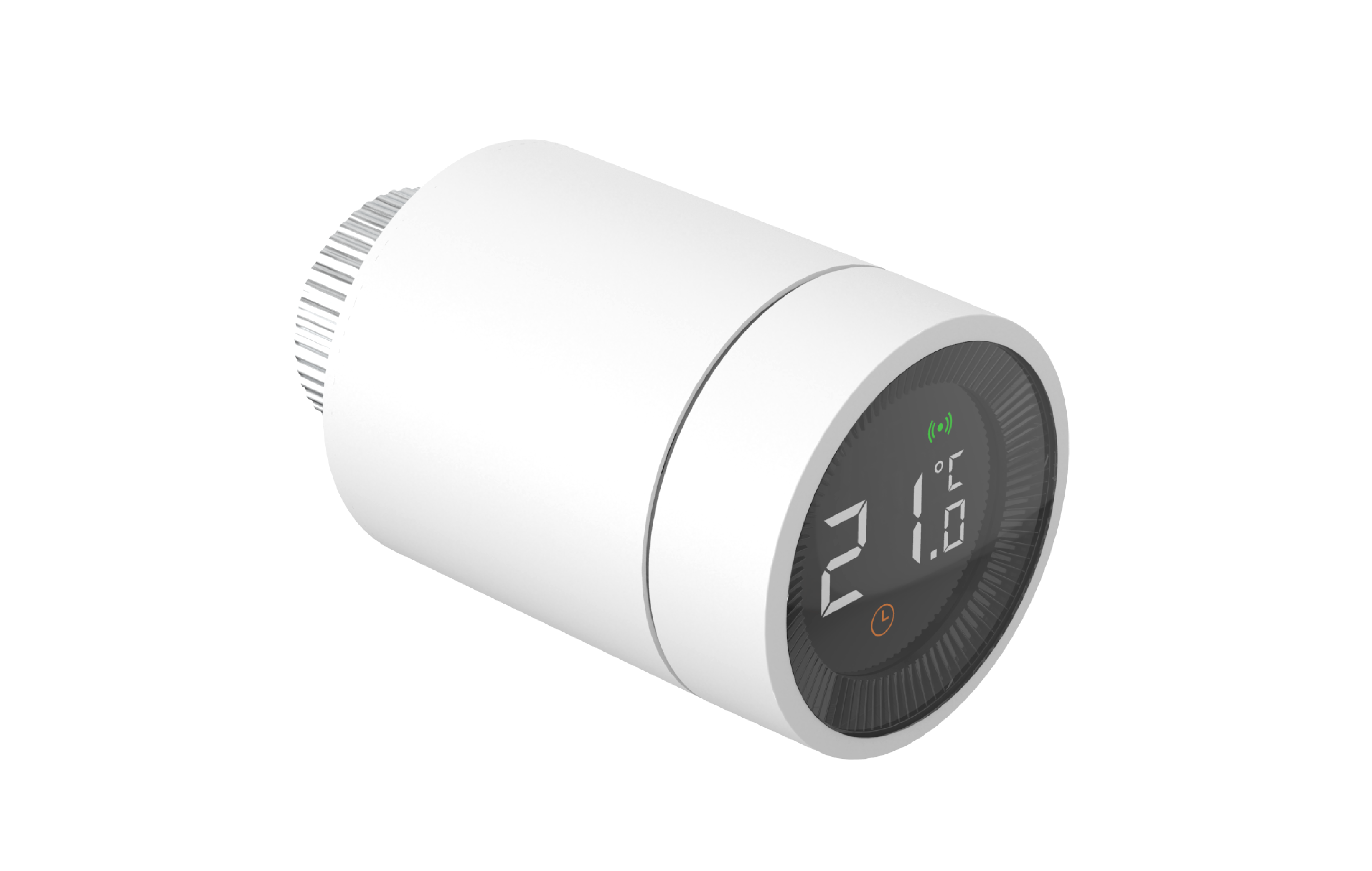

Thermostatic Radiator Valves
GS361U-ZBDR
GS361U-ZBDR
Thermostatic Radiator Valves
With advanced features like smart scheduling, open window detection, and anti-limescale functions, the GS361U-ZBDR not only ensures a comfortable living environment but also significantly reduces energy waste and heating costs. It supports group and scene linkage, allowing you to control multiple devices simultaneously or link with external sensors for intelligent automation. The child lock feature ensures your settings remain secure.
Bullet Points
Key Specifications
| Power Supply | DC 3V (2x AA Batteries) |
| Battery Life | 2 Years |
| Wireless Protocol | Zigbee 3.0 |
| Wireless Distance | ≥30m (Open Environment) |
| Temperature Setting Range | 5°C ~ 30°C (Auto/Manual) |
| Anti-Freezing Mode | 5°C ~ 15°C |
| Measurement Interval | Once Every 2 Minutes |
| Valve Stroke | 8mm Max |
| Motor Thrust | ≥90N |
| Noise Level | <30 dBA |
| Operating Temperature | 0°C ~ 40°C |
| Max Water Temperature | 90°C |
| Dimension | Φ58mm x 91mm |
| Interface Nut | M30 x 1.5mm |
| Weight | ~195g (Including Batteries) |
| Compliance Standard | EN IEC 61000, EN IEC 55014, ETSI EN 300328, EN 60730- |
Usage Scenarios

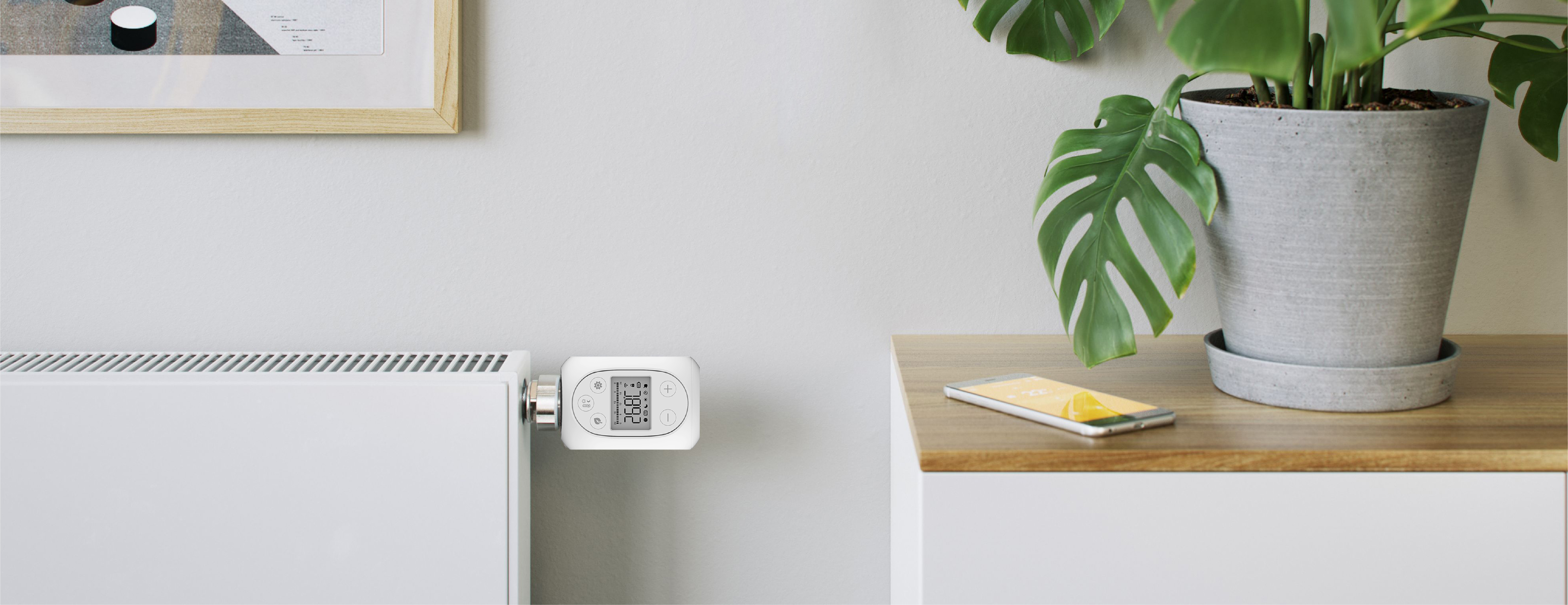

Comfortable Living Room Heating
Automatically adjust the radiator temperature based on your daily routine, ensuring a warm and cozy living space when you are home.
Automated Energy Saving
Utilize open window detection and smart scheduling to stop heating unoccupied rooms or when windows are open, maximizing energy efficiency.

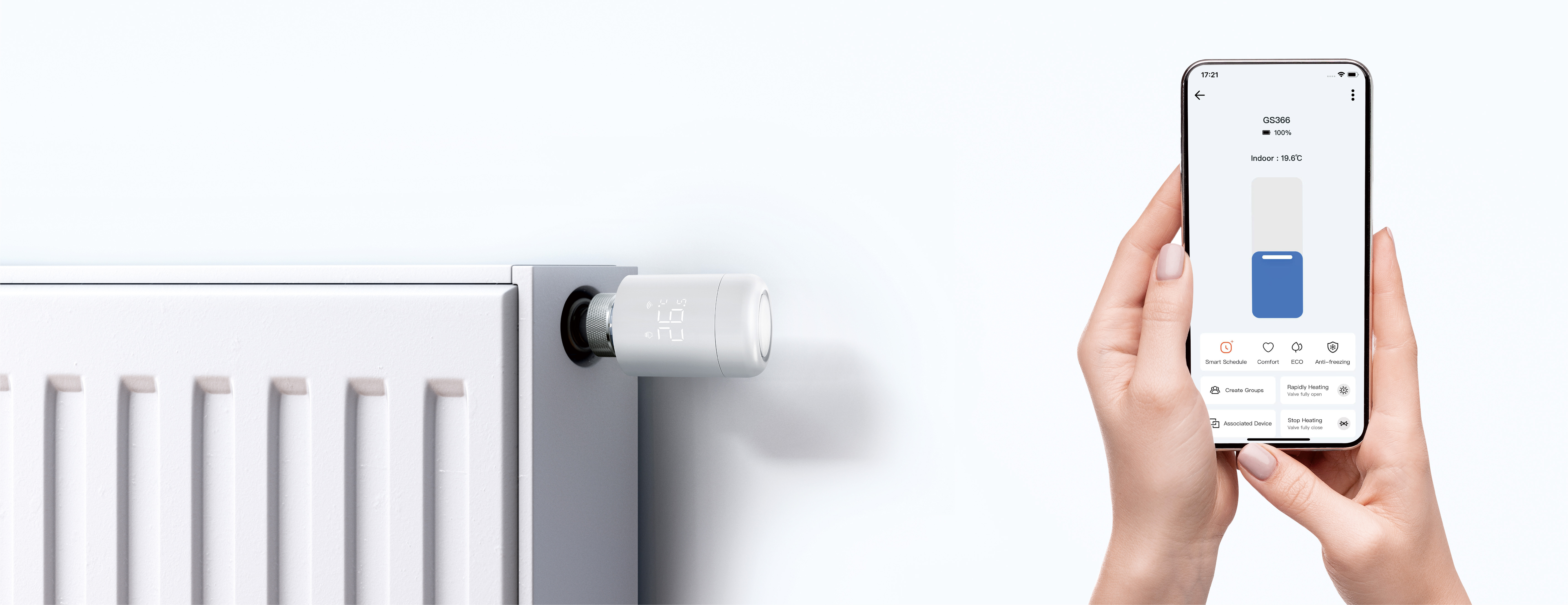

Whole-House Smart Control
Connect to a Zigbee gateway to control all radiators in your home simultaneously, and link with motion sensors for intelligent occupancy-based heating.
Why Siterwell
With over a decade of expertise in IoT and safety technology, Siterwell partners with businesses worldwide to create smarter, safer living environments.
Backed by strong R&D capability, global certifications, and a 56,000 m² production base, we deliver both innovation and reliable large-scale manufacturing.
From award-winning designs to proven global delivery across Asia, Europe, and the US, we focus on building long-term partnerships that drive mutual growth and success.
