PIR Sensor
GS307M
GS307M
Water Leak Alarm

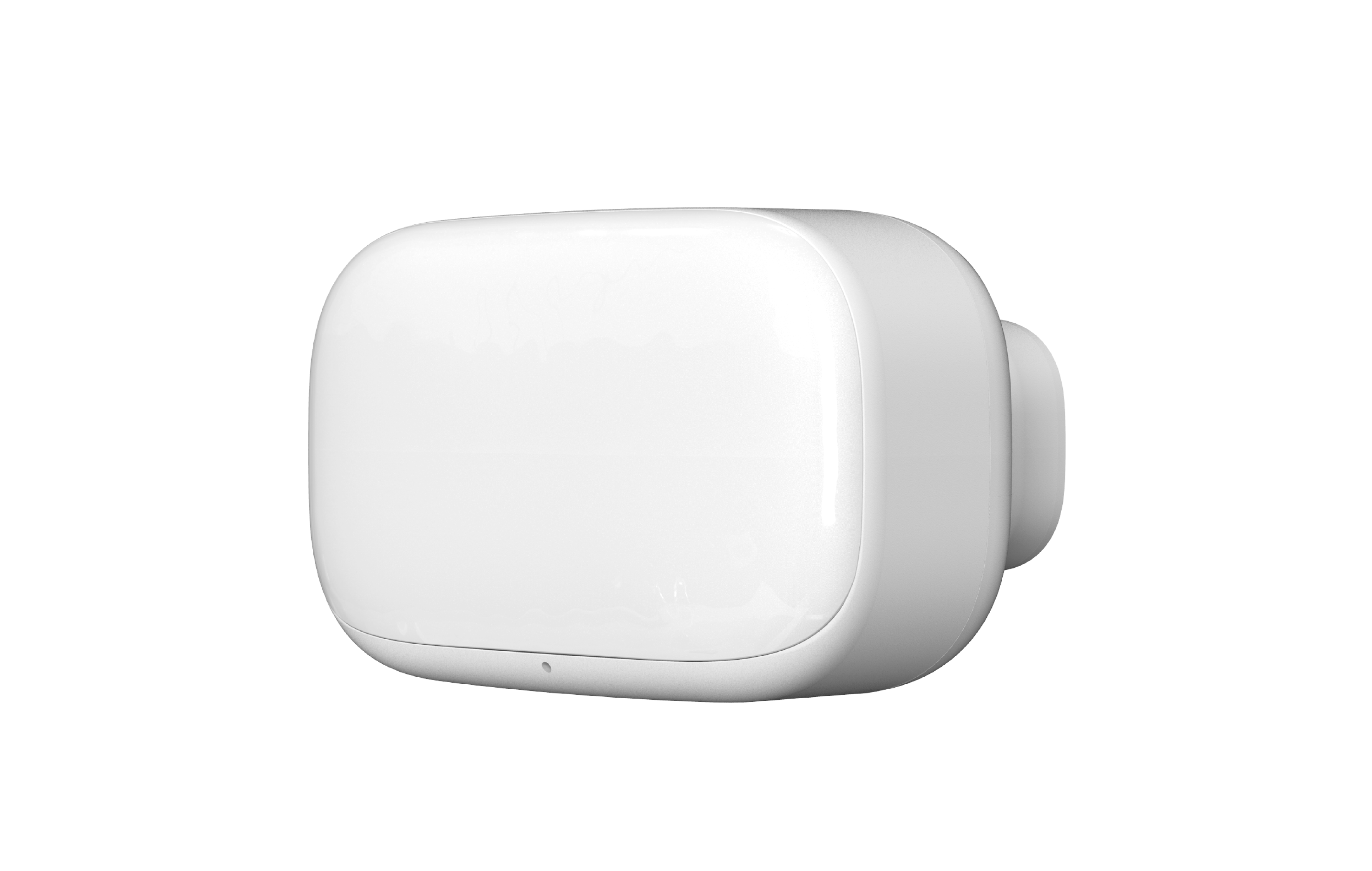

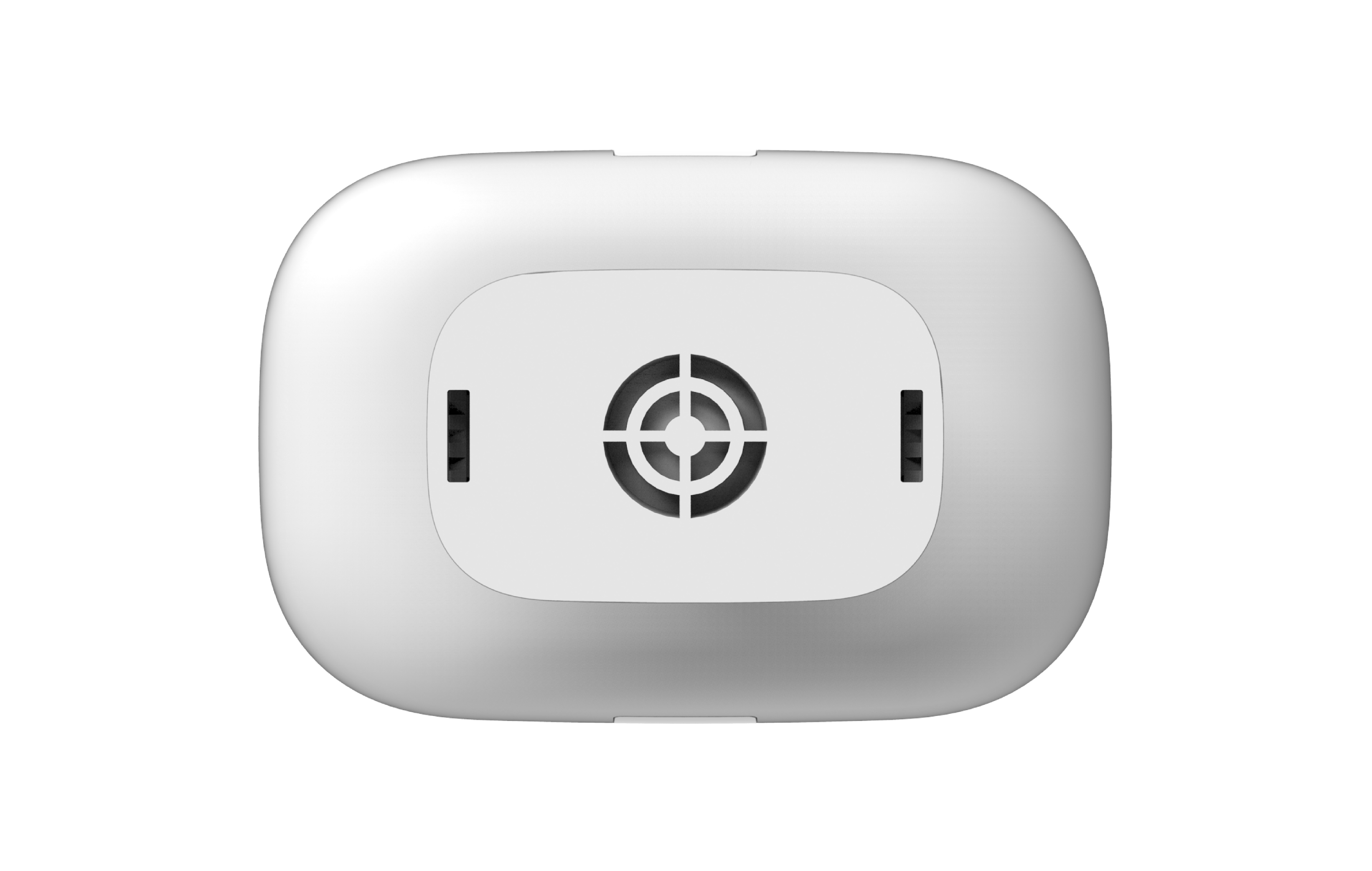

The GS307M is a cutting-edge smart motion detector equipped with a built-in Tuya TS24-U module, supporting the universal Matter over Thread protocol. By utilizing a high-performance Nicera pyroelectric infrared (PIR) sensor combined with a precision Fresnel lens, it accurately detects human movement within a 5 to 8-meter range. Powered by two standard AAA batteries, it offers an exceptional 2-year battery life, making it a reliable, low-maintenance addition to your smart home security system.
Bullet Points
Key Specifications
| Power Supply | 2x AAA (3.0V) batteries |
| Standby Current | < 20μA |
| Trigger Current | Max 60mA |
| Battery Life | 2 Years (10 triggers per day) |
| Wireless Technology | Matter over Thread |
| Wireless Frequency | 2.4GHz |
| Sensor Type | Nicera PIR (RE200F) |
| Detection Angle | 110掳 Horizontal / 105掳 Vertical |
| Detection Distance | 5 - 8 meters |
| Operating Temperature | 0°C to 50°C |
| Humidity Range | 10% - 90% RH |
| Compliance Standard | SGS CE (RED, EMC/LVD EN62368-1), RoHS, CSA Matter |
Usage Scenarios

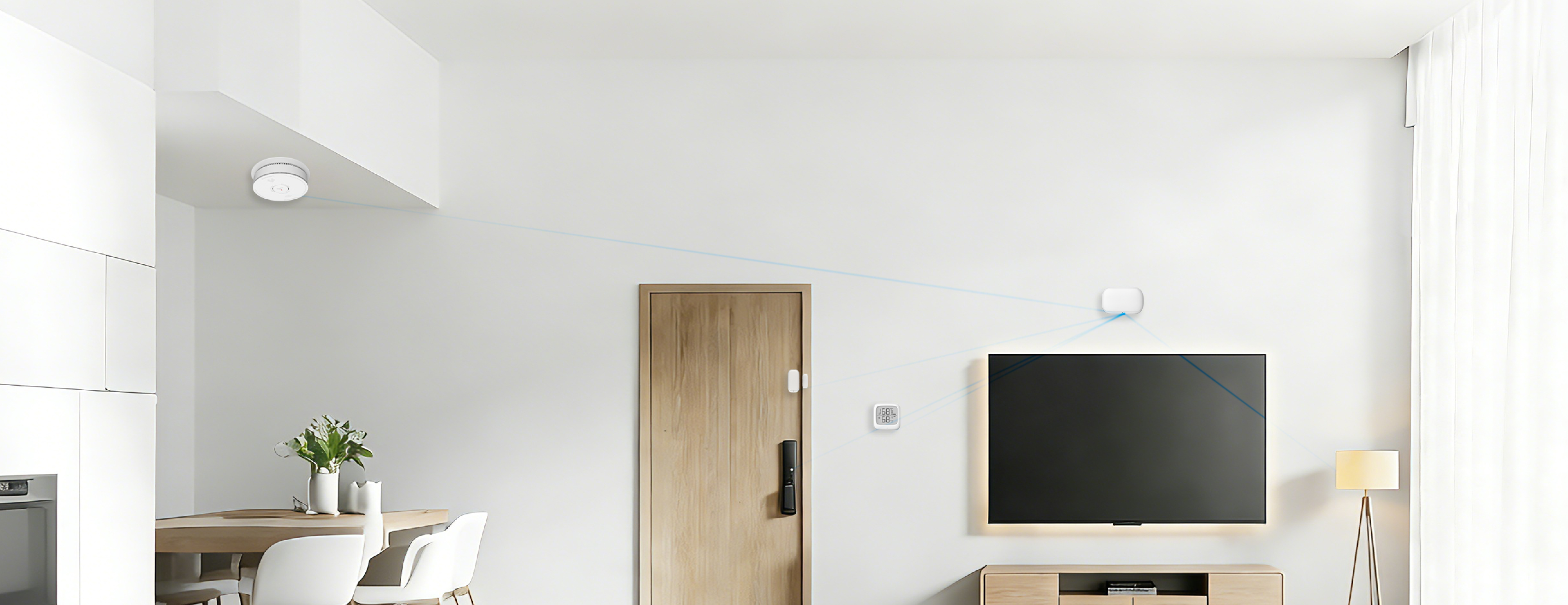

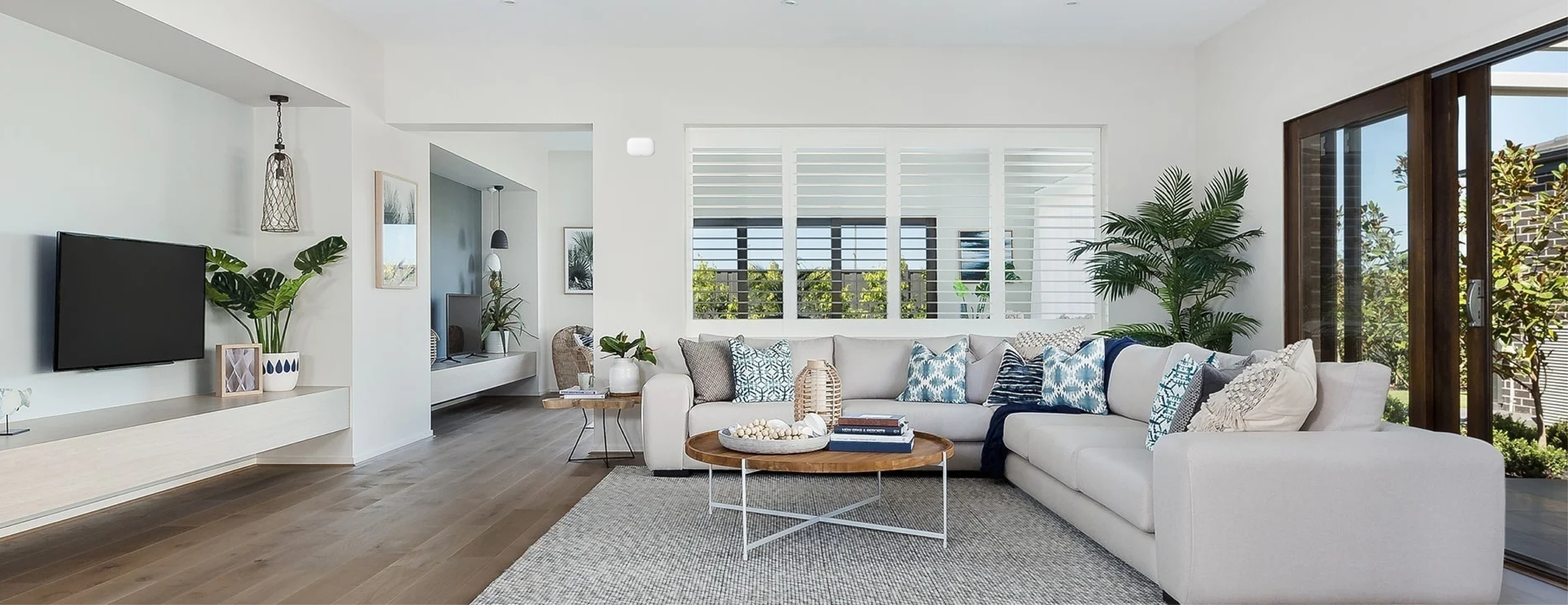

Living Area Monitoring
Ideal for monitoring large living spaces, instantly alerting you to unexpected movement when you are away from home.

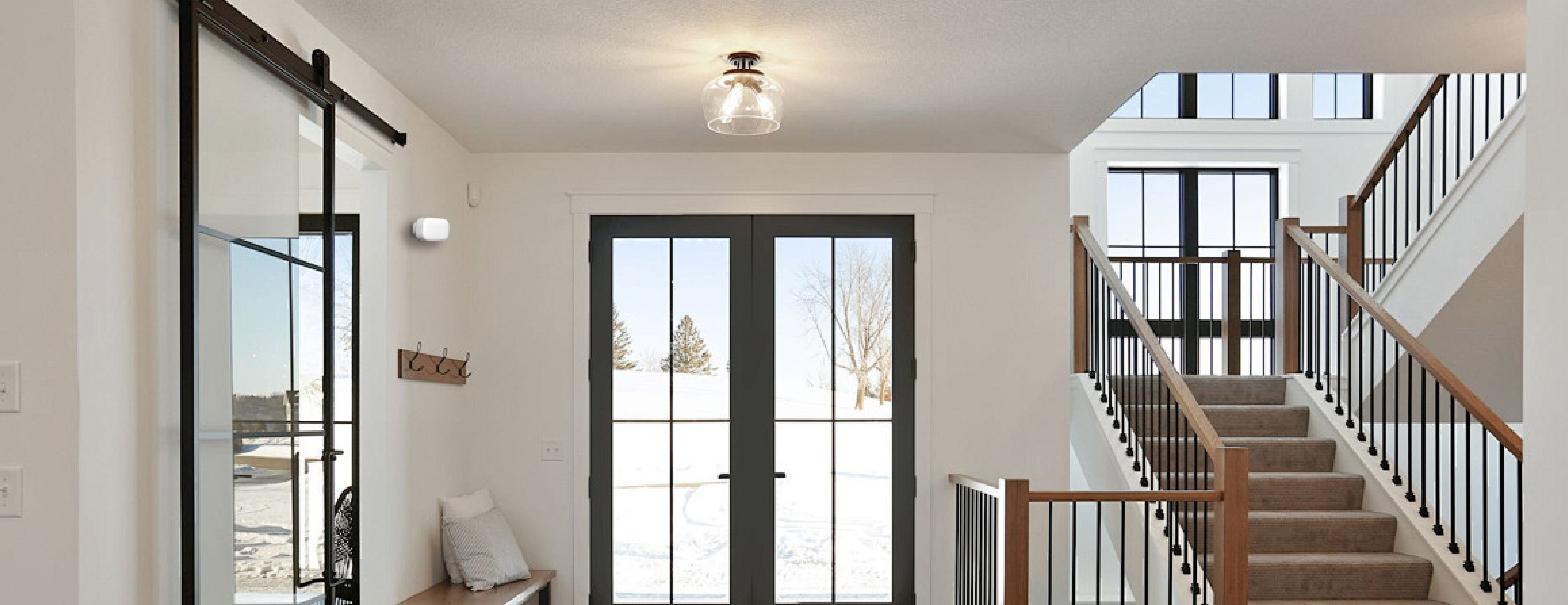

Hallway Security
Perfect for installation in corridors and entryways to detect intruders moving between rooms.
Smart Home Automation
Can be linked with other smart devices to automatically turn on lights or adjust thermostats when you enter a room.
