Smoke Alarm
GS671
GS671
Smoke Alarm

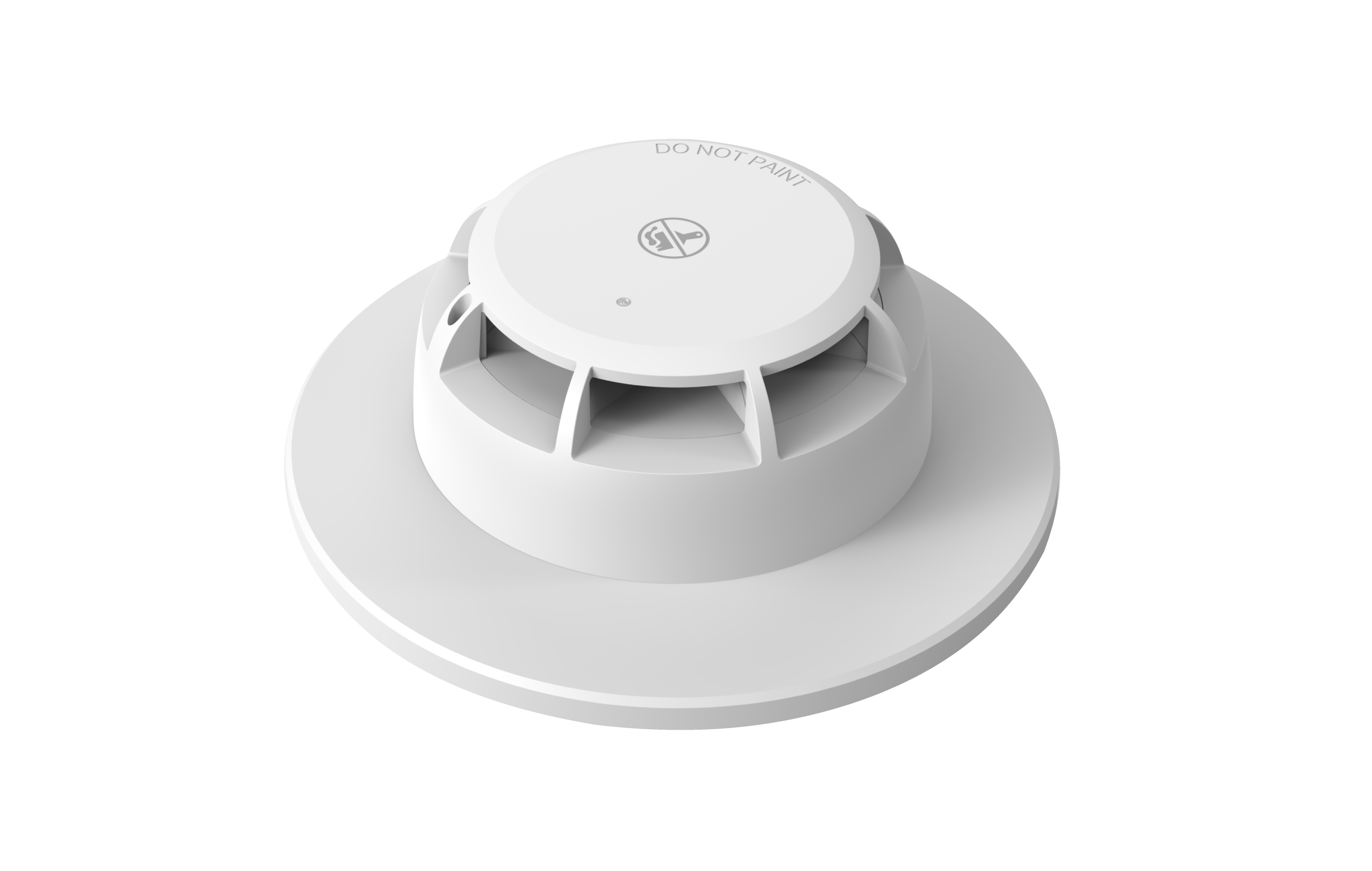

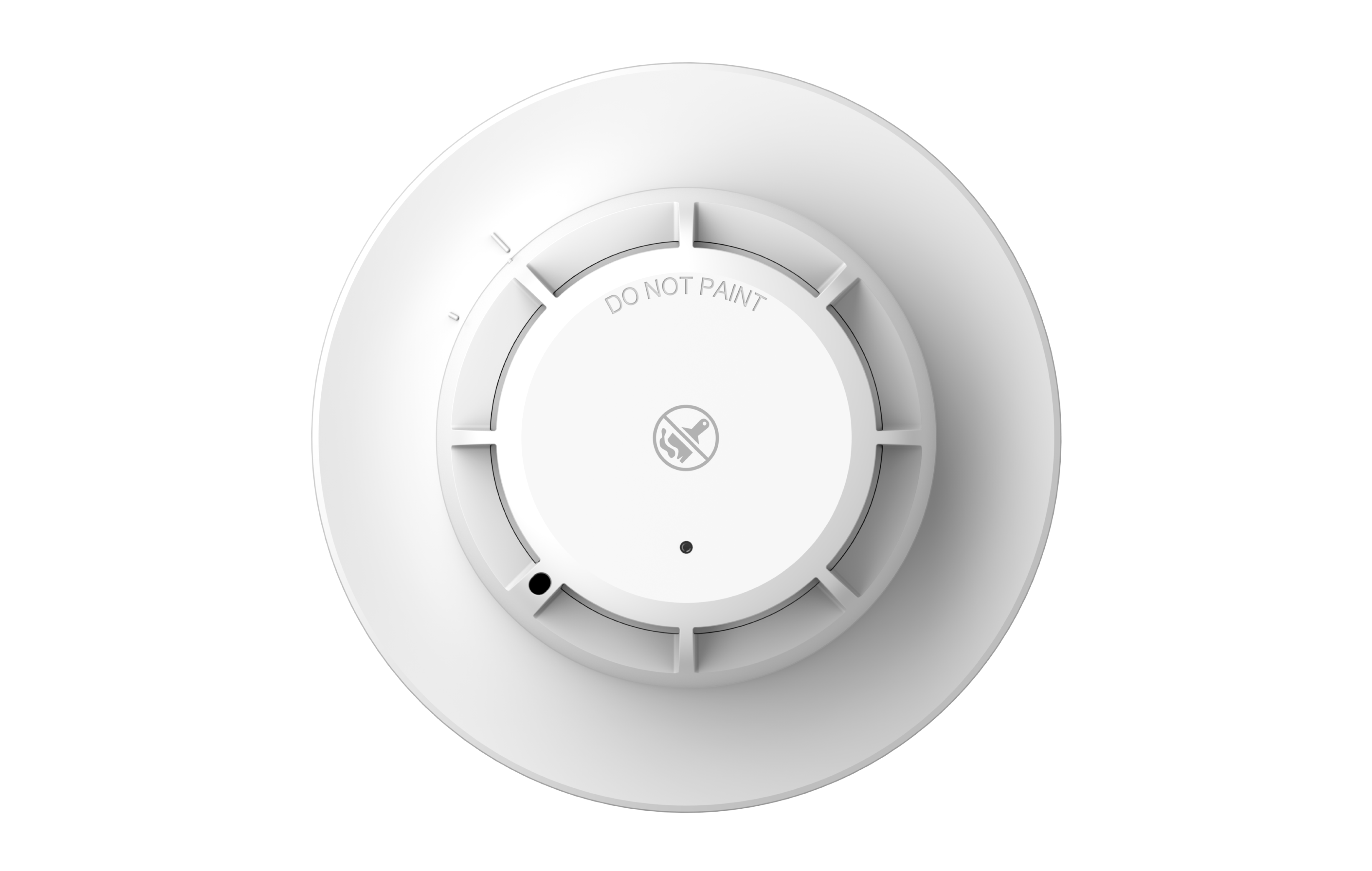

The GS671 is an advanced conventional photoelectric smoke detector engineered specifically for commercial applications. Built to meet the stringent requirements of the upcoming UL 268 8th Edition standard, it features a highly stable sensing chamber that requires no adjustment or replacement. Designed to distinguish between fast-moving fires and smoldering polyurethane foam fires, it delivers an optimized reduction in nuisance alarms—especially during cooking events—while enhancing reaction time to real, life-threatening fires.
Bullet Points
Key Specifications
| Operating Voltage | Nominal: 12/24 VDC (Min: 8VDC, Max: 42VDC) |
| Standby Current Average | 45μA @ 12VDC / 150μA @ 24VDC |
| Alarm Current | 20mA @ 12V / 70mA @ 24V |
| Indicator | POWER: Green LED / FAULT & ALARM: Red LED |
| Wiring | Polarity-insensitive two-wire |
| Reset Time | ≤1 sec |
| Class | Type A, indoors |
| Operating Life | 10 years |
| Operating Temperature | 0°C to 38°C (32°F to 100°F), dry |
| Relative Humidity | Max 95% RH (non-condensing) |
| Enclosure Material | Flame-Retardant ABS |
| Dimension | Φ 150.5mm x 51mm |
| Weight | 150g |
| Safety Standards | UL 268 8th Edition |
Usage Scenarios
Hotels & Restaurants
Perfect for hospitality venues where the advanced UL 268 8th Edition algorithms effectively ignore cooking fumes from kitchens while remaining highly sensitive to actual fire threats.
Markets & Supermarkets
Provides expansive, reliable coverage for large retail environments, ensuring the safety of shoppers and staff with a tamper-proof design.
Hospitals & High-Rise Buildings
Integrates seamlessly into complex commercial fire alarm control systems, offering 360° visual status indication for efficient maintenance in multi-story facilities.
